Description

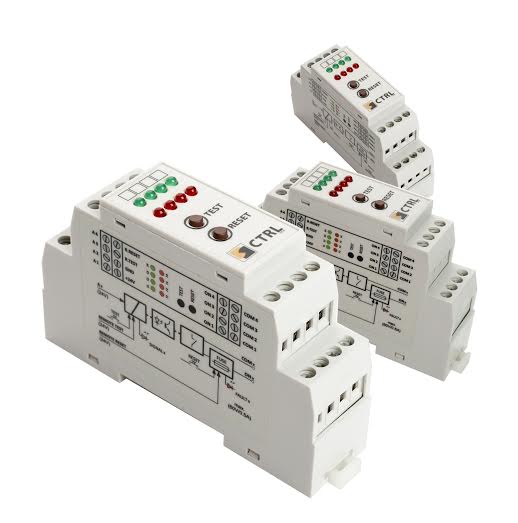

4SSR-F is 4 solid state relay with own electronic fuses. This device is ideally suited for controlling low voltage DC.
Application
- Isolated interface between 24 VDC and 0-60 VDC control circuitry.
- Fuses interface for switched devices.
- Switching motors, valves, solenoids, fans…
| Technical characteristics | |
|---|---|
| Switching Voltage | 24V |
| Switched Voltage | 0 - 60V |
| Switched Current | max 500mA |
| Switched Time | 1ms |
| Electrical Fuse Time | max 100us |
| ESP | up to 5kV |

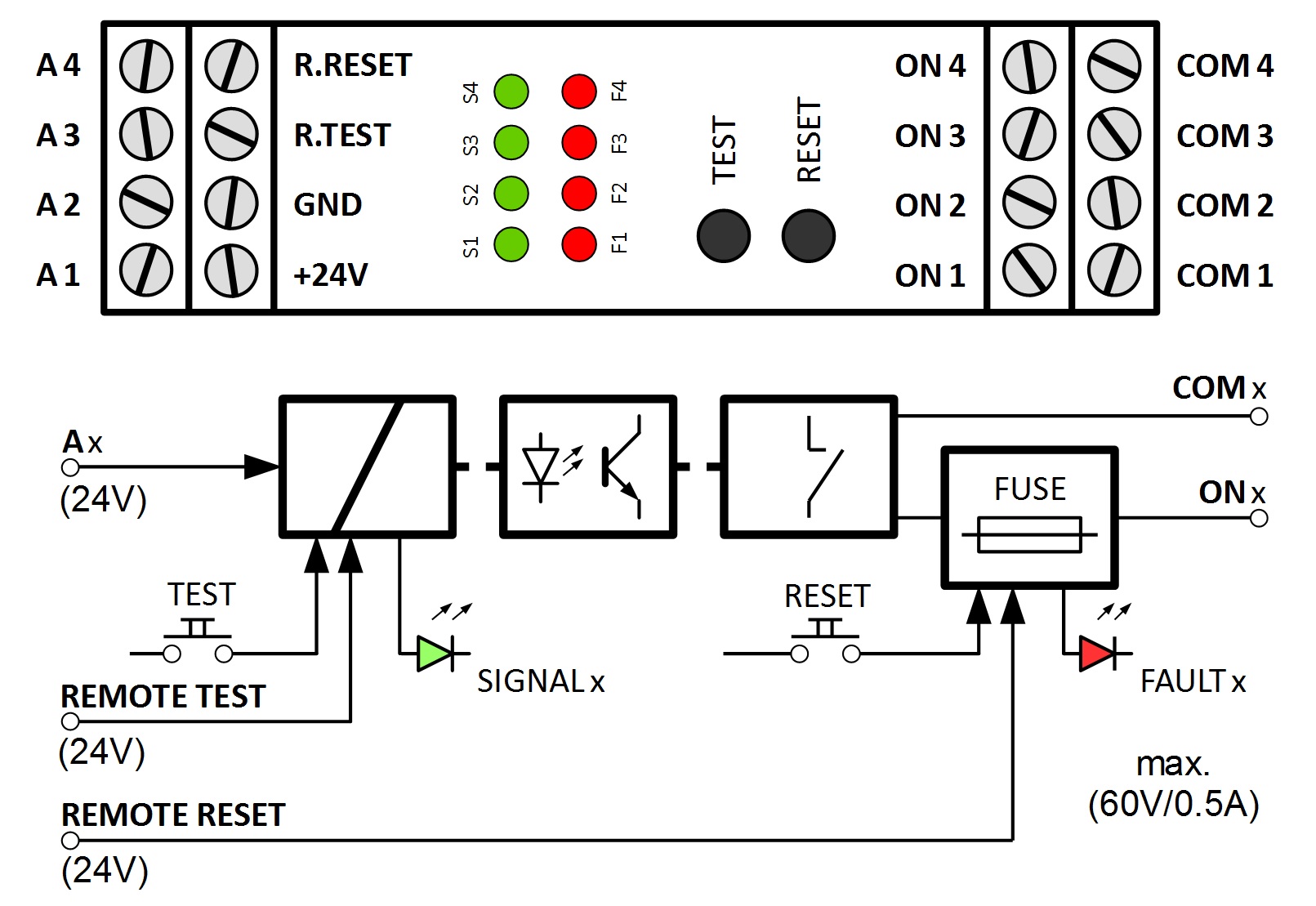

Advantages
- Shock resistant.
- Local and PLC test communication.
- Local and PLC reset electrical fuses.
