Description
Electronic driver which control industrial machine based on axis rotation. EOS 97/06 can be use in any industrial equipment where is possible to follow(monitor) work process as axis rotation which is proportionally with the process.
Application
Most often application where EOS is applied are:
- servo actuators
EOS Functions
- Sensing current position of actuator armature.
- Sensing torque overload of actuator.
- Current position displayed on 7-seg. display.
- Current position converted as current loop 4-20mA.
- Signalling position open/close of actuator.
- Signalling torque overloading of actuator.
- Signalling actuator status for opening and closing.
- Failure states evaluation.
EOS 97/06-OT Modules

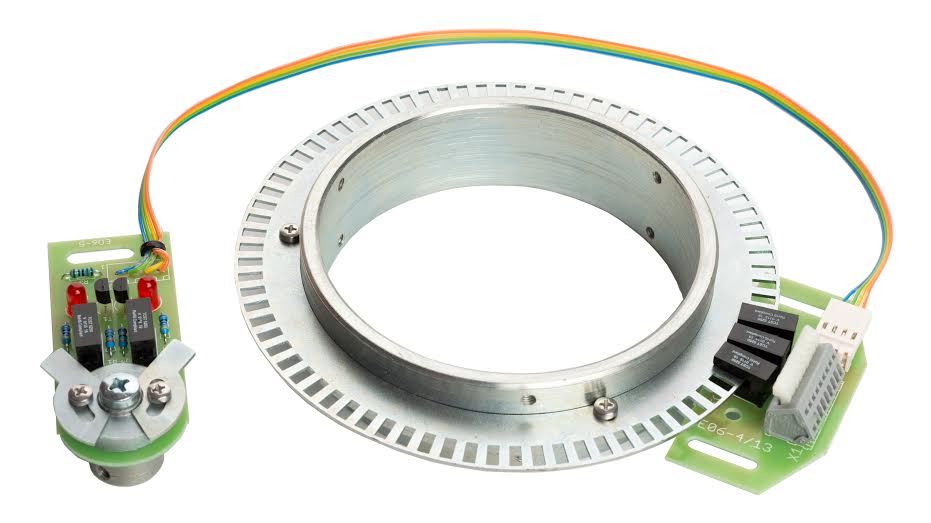

Sensors module:

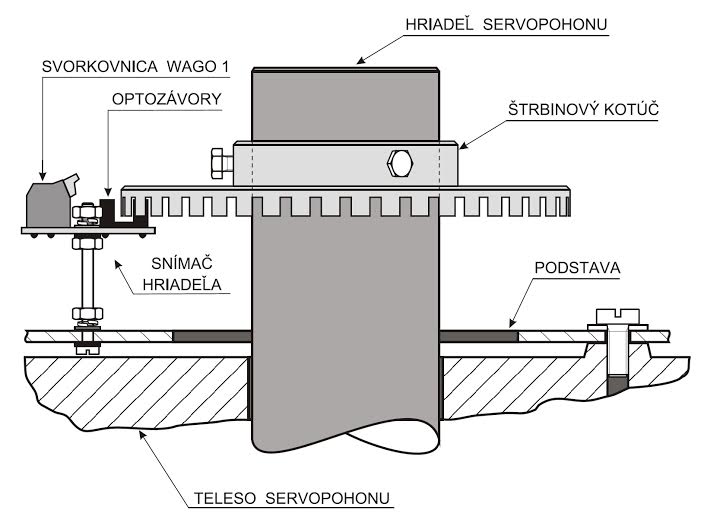

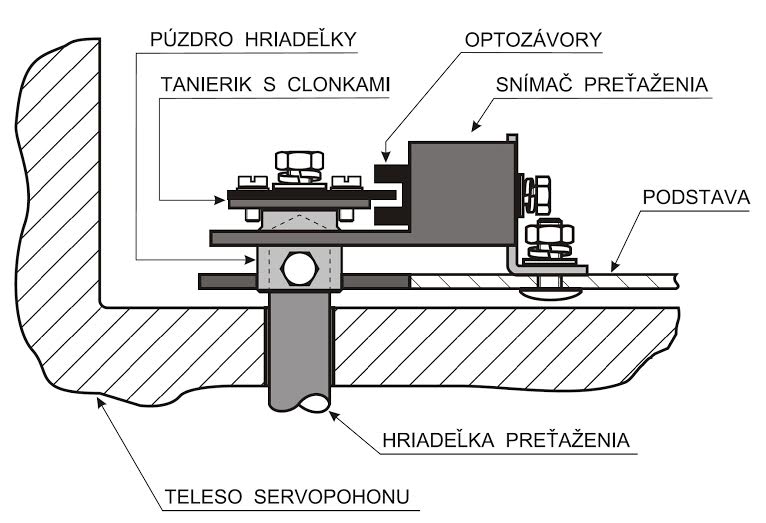

Module with optical sensors, assembled direct in servomotor, monitor current position, motion of actuator shaft and torque overloading of actuator.

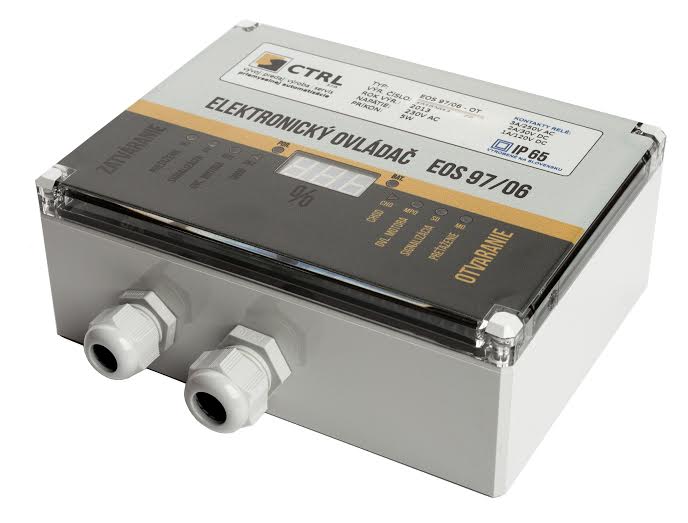

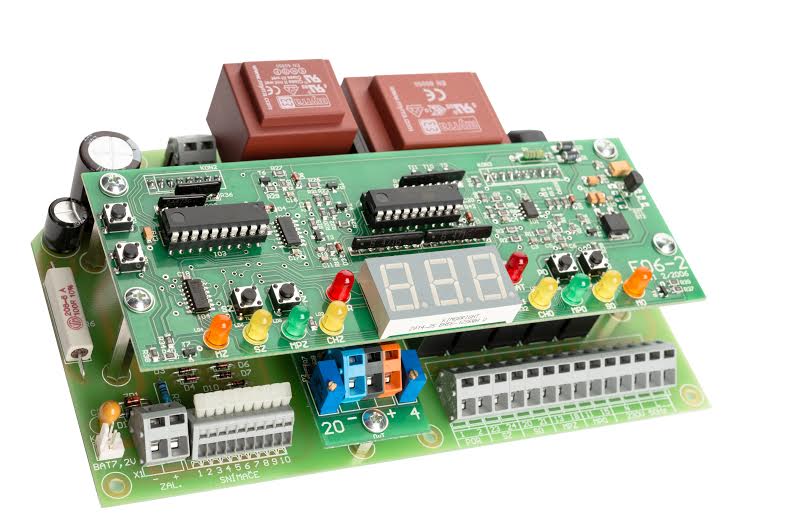

Main unit module:
Driving module contains two CPUs, five relay outputs and current loop. The electronics of module is encapsulated in PVC box with IP65 cover. Signal transmission from Sensors Module is received through liycy cable with electromagnetic compatibility.

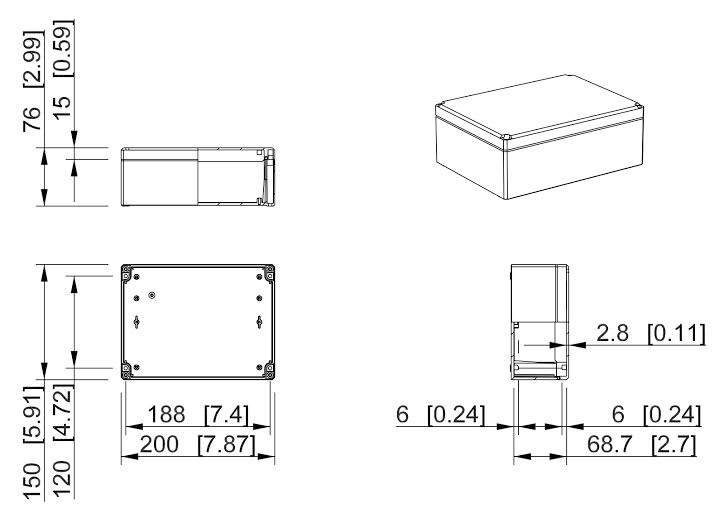

Dimensions of box
| Electrical and Mechanical characteristics | |
|---|---|
| Voltage supply | 230 V AC +-15%, 48-52 Hz |
| Input power requirement | 5 VA |
| Fuse protection | 32mA 5x20T |
| Back-up power supply | 7,2V 4411 mAh |
| Current comsumtion at power failure | max. 100 mA |
| Battery life | 5 years |
| Positioning accuracy | 2° on 1 turn of shaft |
| Relay contacts | 5 x 8A 230VAC / 24VDC |
| Max. switching capacity | 2000VA, 192W |
| Number of channels | MZ, MO, PZ, PO, SZ, SO |
| Led signals | 10 x LED |
| Position display | 3 x 7seg display |
| Blocking time of overloading | 2-20 seconds |
| Analog output | 4-20 mA/250W pri 18 -28 VDC – active/passive |
| Revolution count | Max 10 000 |
| Working temperature | from -30°C to +80°C |
| Protection against enviroment | IP65 |

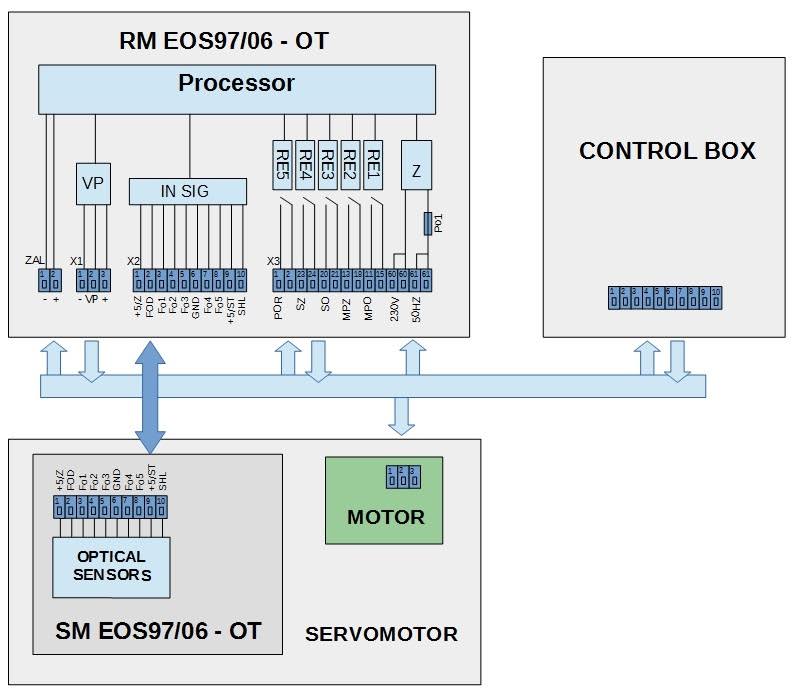

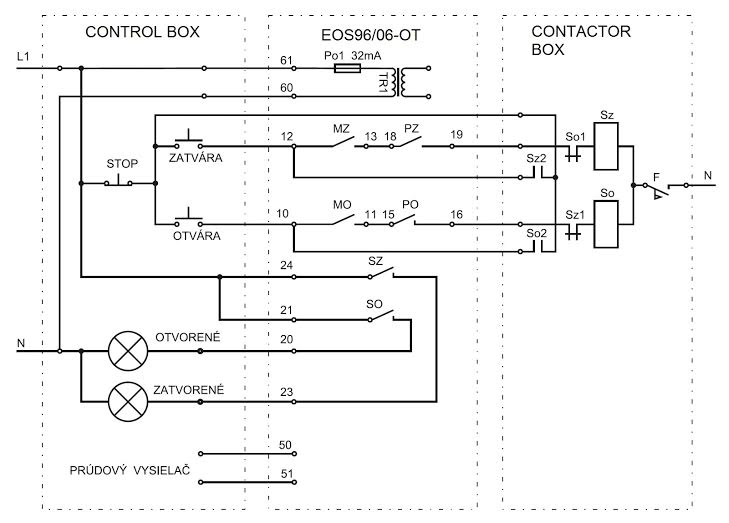

Example of application
| Description | |
|---|---|
| RM EOS96/06 – OT | Main EOS module |
| SM EOS97/06 – OT | Sensors module |
| Processor | CPU |
| X1 | Clamps block of the position transmitter |
| X2 | Clamps block of rotation sensors |
| X3 | Output clamps block |
| MPO | Relay for opening armature |
| MPZ | Relay for closing armature |
| SO | Relay for sign opened armature |
| SZ | Relay for sign closed armature |
| POR | Relay for failure signaling |
| RE1...RE5 | Relays |
| IN SIG | Input signals |
| VP | Position transmitter, 4 - 20 mA |
| - | The negative pole of the position transmitter |
| OUT | Output signal of the position transmitter |
| + | VCC, +... |
| Z | Power supply |
| ZAL | External power supply |
| MOTOR | Motor of actuator |
| OPTICAL SENSORS | Photo sensors of rotations and overloading of actuator |
